Custom Abutment Design — Patient-Specific Implant Abutments

We design custom implant abutments on your implant system and library, shaped around the planned restoration rather than a stock geometry.

The emergence profile and margin position are set so the soft tissue is supported and the cement line stays cleanable.

What we focus on in every custom abutments case

• Emergence profile. Tissue supported without blanching.

• Margin position. Placed where excess cement can be removed.

• Screw channel. Angulated away from aesthetic surfaces.

• Anti-rotation. Connection geometry respected exactly.

Our step-by-step process

1. 1

   Submit your scanned case files and instructions.

2. 2

   We produce the digital design and send it for review.

3. 3

   After approval we deliver the final files.

4. 4

   You receive the stl file — ready for production.

How custom implant abutments are designed

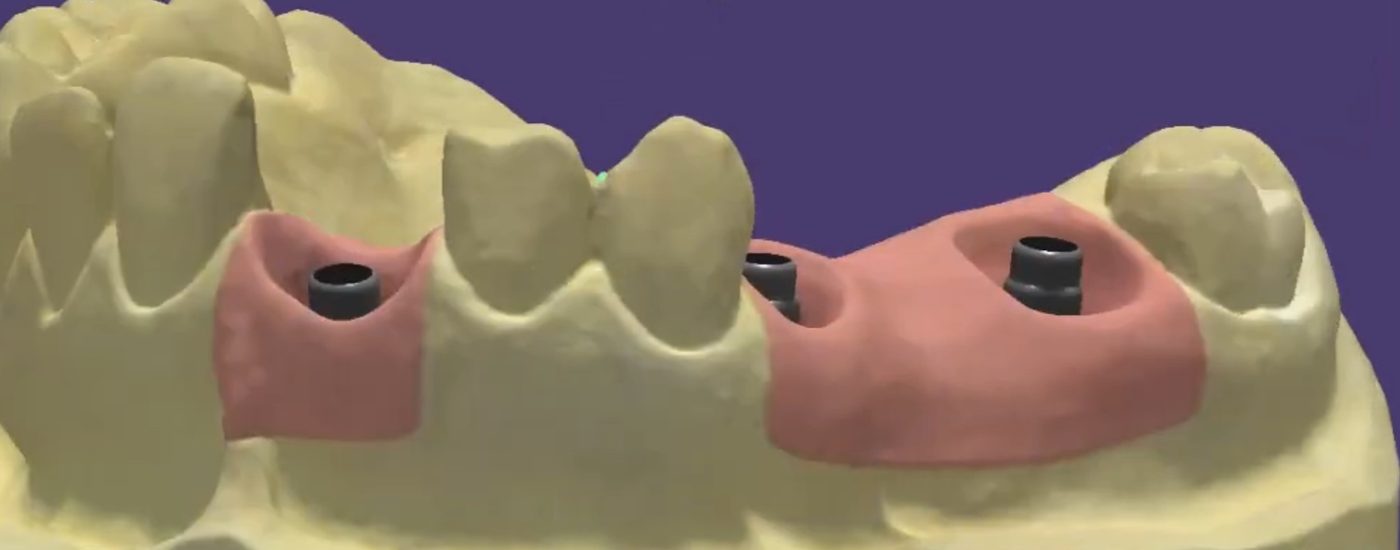

A custom abutment exists to fix what a stock abutment cannot: emergence, angulation and margin position. Design starts from the manufacturer's interface geometry, taken from the validated library so the connection is exactly to specification — this part is never reshaped or approximated.

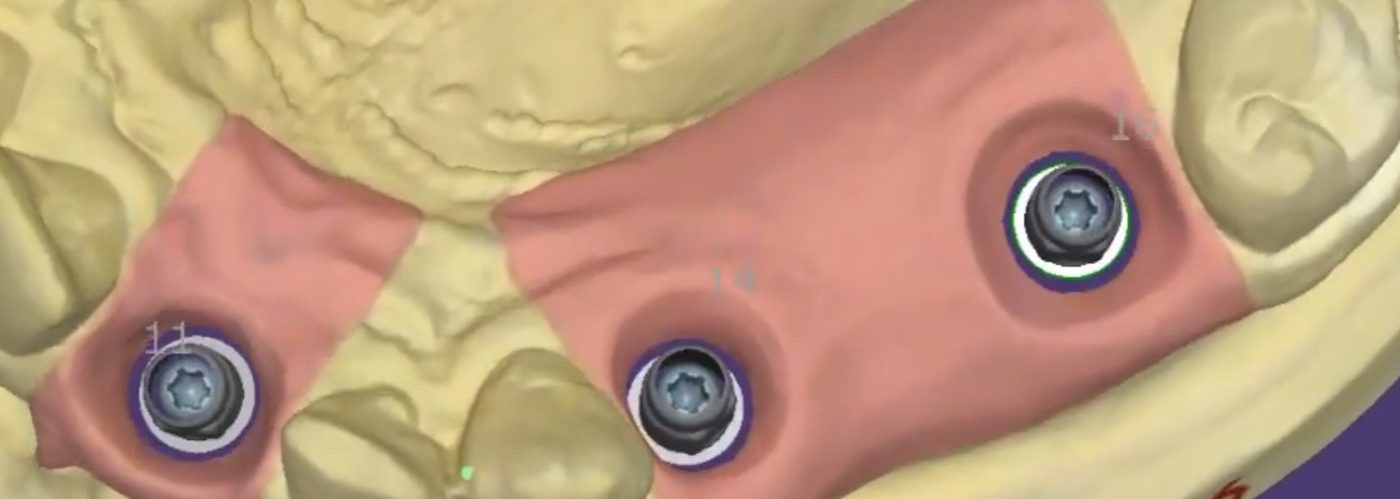

Above the interface, the emergence profile is contoured to the soft tissue as it was scanned, supporting the papilla and giving the crown a cleansable transition. The margin is set at a depth that the clinician can reach for cement removal, usually a controlled distance sub-gingival on the buccal and closer to level interproximally.

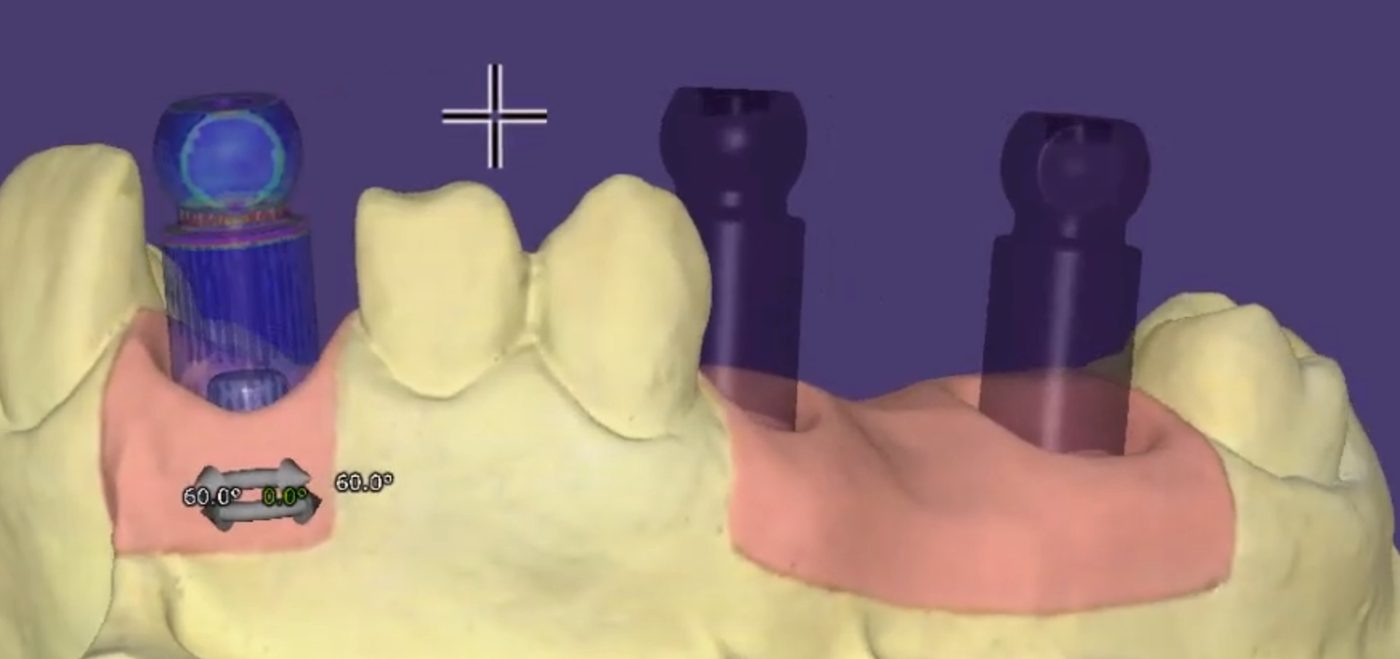

The abutment body is then shaped for retention and for the restoration on top: taper, height and anti-rotation are matched to the crown, and screw channel angulation is corrected where the implant axis would otherwise exit through the facial surface.

Material choice changes the geometry. A full titanium abutment can carry a thinner wall and a deeper margin; a zirconia abutment on a titanium base needs more bulk around the bonding surface and a wall thickness that will not chip during seating, and the bonding surface itself is designed with the height and retention the cement system expects.

Emergence is designed against the tissue as scanned, not against an ideal. Where the soft tissue was shaped by a provisional, we work from that scan so the definitive abutment reproduces a contour the tissue has already accepted; where it was not, we support the papilla without over-contouring, which is what causes blanching and recession.

Where the abutment and crown are designed together, both are built in the same project: the margin, the emergence and the crown's internal geometry are matched to each other, so the finished pair seats as one and cement clean-up is possible at the depth the clinician can reach.

Cases we design most often

• Titanium and titanium-base hybrid abutments
• Zirconia abutments on a Ti-base for anterior aesthetics
• Angulated screw channel designs on off-axis implants
• Abutment plus crown designed together as one case
• Custom healing abutments and provisional emergence shaping

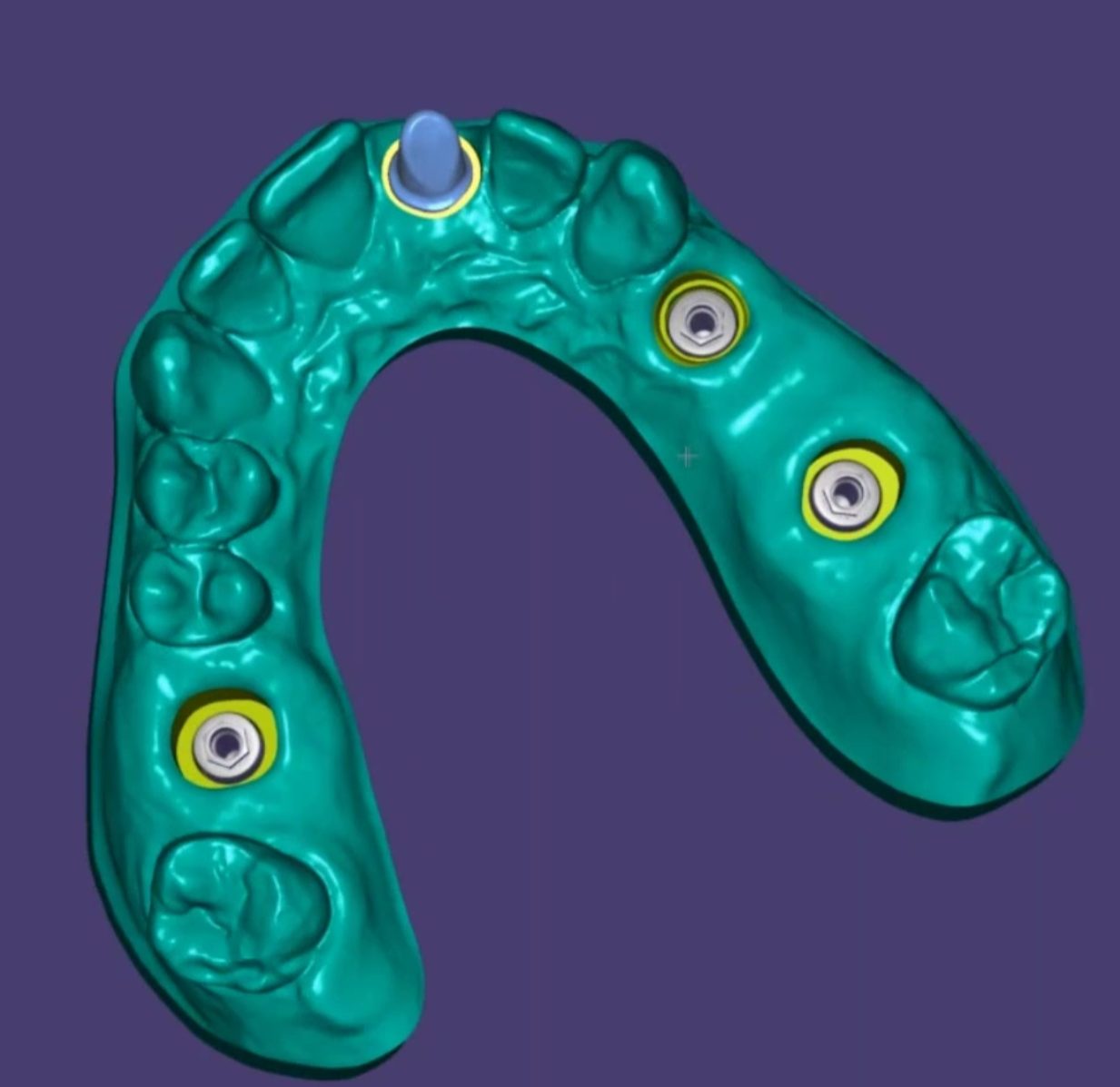

• Multi-unit cases where several abutments share one insertion path

What we need to start

• Scan with the correct scan body for your implant system
• Implant brand, platform diameter and connection type
• The planned restoration: cemented, screw-retained, material
• The soft-tissue scan, and a provisional scan where emergence should be copied
• Output: abutment STL with library interface, plus the matched crown file on request
