Night Guard & Splint Design — Occlusal Devices, Designed Digitally
- Delivery time
- 1 – 2 days
- Revisions
- 1 – 3
- Software
- exocad
- Delivers
- STL file
We design night guards and occlusal splints for bruxism, joint therapy and protection cases, in hard, soft or dual-material configurations.
Every device is designed around the antagonist scan, so contacts are even from the moment it is seated.
What we focus on in every night guards & splints case
Even contact. Contacts distributed across the arch, not on one cusp.
Thickness control. Enough material to last, thin enough to wear.
Border extension. Comfortable margins that stay clear of tissue.
Retention. Undercut engagement tuned to the case.
Our step-by-step process
- 1
Submit your scanned case files and instructions.
- 2
We produce the digital design and send it for review.
- 3
After approval we deliver the final files.
- 4
You receive the stl file — ready for production.

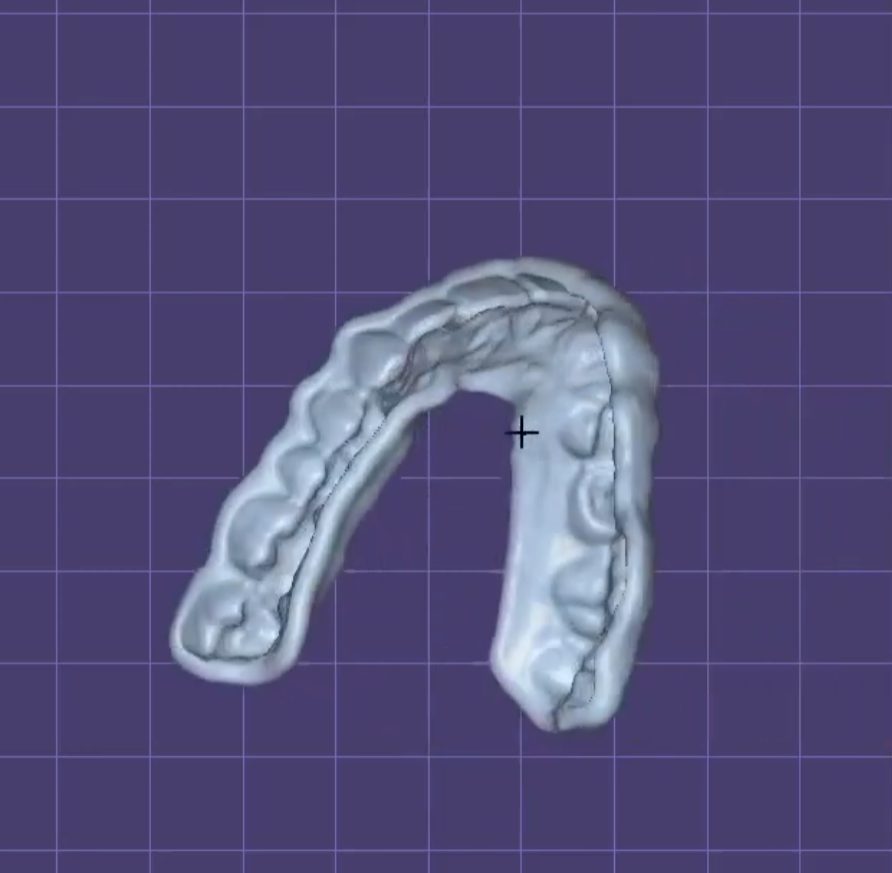

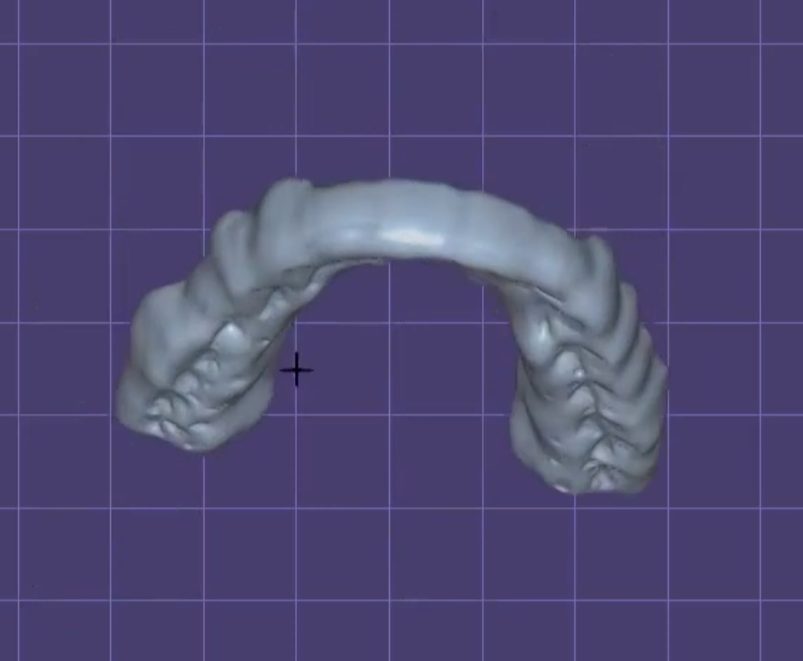

How night guards and bite splints are designed
A splint works through its occlusal surface, not its bulk. The design starts from the scanned arches mounted at the therapeutic vertical dimension, and the occlusal table is built flat and even so every opposing cusp lands with the same intensity at the same moment.
Guidance is then added: canine or anterior ramps that disclude the posterior teeth in excursion, angled to the movement recorded in the scan rather than to a default value. Retention comes from controlled engagement of the buccal undercuts, tight enough to stay seated overnight and loose enough for the patient to remove it.
Thickness and border extension are adjusted to the indication — a bruxism guard, a Michigan splint and a repositioning appliance are not the same object — and the file is exported for printing or milling.
Appliance types we design
- Bruxism night guards, hard and soft-lined
- Michigan and flat-plane stabilisation splints
- Anterior deprogrammers
- Repositioning and TMJ appliances
What we need to start
- Upper and lower scans plus the bite registration
- The appliance type and the vertical dimension you want
- The material and production method you will use
Night Guards & Splints design — frequently asked questions
- Which splint types do you design?
- Night guards, Michigan splints, bruxism guards and flat-plane splints, with the thickness and coverage you prescribe.
- How is the occlusal surface built?
- Contacts are balanced against the antagonist arch at the bite height you specify, with even guidance in excursions.
- How long does night guard design take?
- Routine cases are designed overnight. Complex or large cases can take longer, and we tell you the expected time when we confirm the case.
- How many revisions are included?
- Revisions are unlimited. We keep adjusting the design until it matches your prescription and is ready for production.
- Which software do you use, and what do I receive?
- We design in exocad and deliver the stl file, ready to send straight to your mill or printer.
Other design services
Fast, precise and customized results
E-mail your STL files to info@dmdentaldesign.com and get your design ready. First case? Tell us the indication and we'll confirm turnaround before we start.
